نام محصول:
جداکننده لوله مغناطیسی
نام انگلیسی:
Magnetic tube separator
برند:
مشخصات:

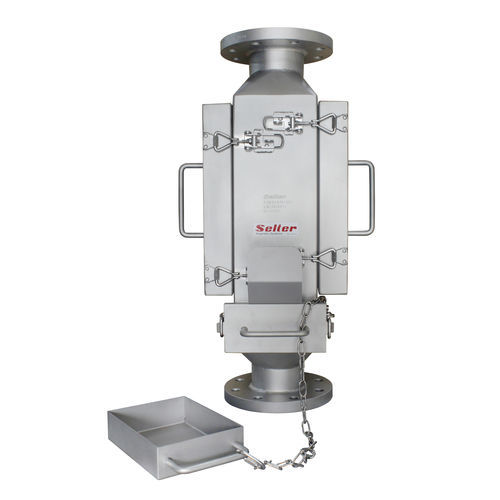

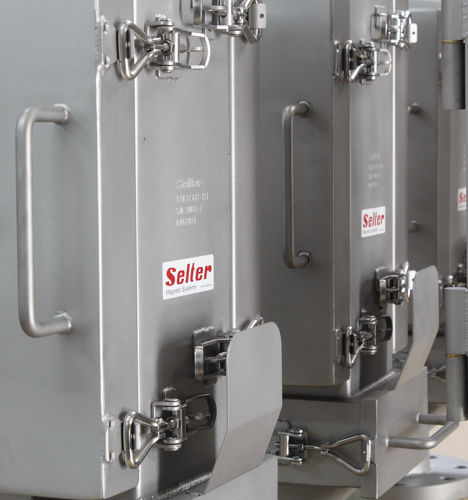

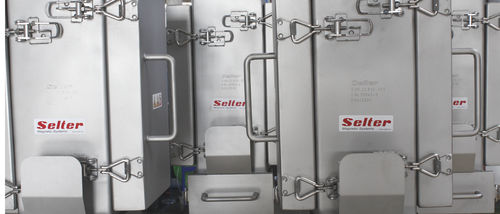

These magnetic tubes are a séparation system designed for the removal of iron particles from materials raw materials that do not flow easily through the system, such as powder materials and granulated products. The system is installed
in a part of the duct that transports the product during the production process. The unit is fully attached to the tube so that it remains an intégral part of the duct.
These magnetic tubes are characterized by the position of the magnets. These are located almost entirely outside the flow for do not interfere with its passage through the duct.
The magnetic system consists of two extremely powerful plates that they sit on opposite sides and capture the iron particles. They are effective even in a flow that occupies full capacity of the tube and continuously.
CHARACTERISTICS:
Execution: sturdy construction
Nd35 quality Neodymium permanent magnets Manual cleaning with
cleaning drawer Housing: AISI304 stainless steel
Surface treatment: sandblasted
With fins DIN 2576 ND10 NW
High pressure (max. 2 bar)
DESCRIPTION AND OPERATION
The magnetic tube basically consists of a shell and two plates magnetic The magnetic system consists of two plates extremely powerful which are located on opposite sides and capture the iron particles. This housing has an inlet and an outlet that attaches
to the pipe. The product containing the unwanted iron contamination enters the tube and the iron particles are trapped on the tube walls by the magnetic flux generated by the outer plates.
توضیحات:
Separated substance
for ferrous metals
Technology
magnetic tube
