نام محصول:
تنظیم کننده فشار مستقیم
نام انگلیسی:
Direct-acting pressure regulator RFT / RFF series
برند:
Elite Line Industrial Corp.
مشخصات:

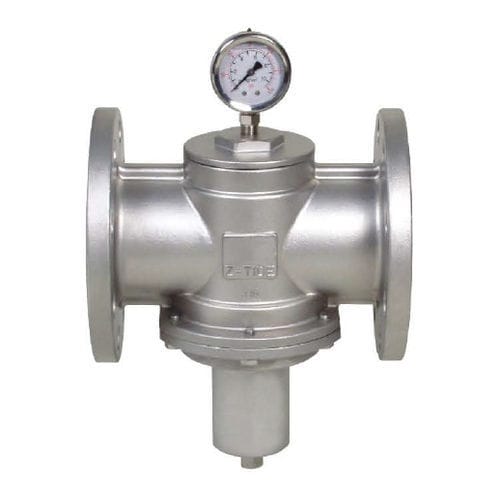

Model RFT /RFF, a Direct Acting Pressure Sustaining Regulator Valve is an automatic, direct active controlled valve that activated by the pressure of the pipeline. The valve will maintain a steady, predetermined pressure at the upstream of a pipeline.
Definition of a Pressure Sustaining Regulator Valve
Pressure Sustaining Regulator Valve, also known as a Back Pressure Valve, is a device that maintains a defined pressure upstream of itself (at its own inlet).
The valve gate is normally closed. Gate will open once the upstream pressure exceeds the required set-point, thus reducing its upstream pressure. Gate will resume close position once upstream pressure falls below the set-point.
Application of Direct Acting Pressure Sustaining Valve
Our Direct Acting Pressure Sustaining Valve has utilized in wide range of sector, such as (not limited to) Industrial, Building, Food & Beverage, Pharmaceutical and Water Sectors. Generally used for gases and liquids
Features
◆ Pressure Sustaining Valve is also known as Back Pressure Valve.
◆ Function to maintain a stable pressure in pipeline system.
◆ Suitable for process automation control and many general purpose applications.
◆ Convenient in-style mounts either horizontally or vertically.
◆ Wide range capacity to handle local water supply pressure and adjust to specific pump specifications.
◆ Adjusting nut allows easy calibrated pressure adjustment.
◆ Stainless Steel 316 lower body and upper body construction for durability and compatibility.
◆ Easy maintenance, maintenance kits are available upon request.
توضیحات:
Product
for water, for oil, fuel oil
Technology
piston
Number of stages
single-stage
Material
stainless steel, Teflon®, Viton®, NBR
Applications
industrial, for medical applications, for water systems, for chemical applications, for food applications, for pharmaceutical applications
Other characteristics
with pressure gauge, direct-acting
Pressure
Min.: 1 bar(14.5 psi)Max.: 13 bar(188.55 psi)
Orifice diameter
Min.: 0.5 inMax.: 6 in
Temperature
Min.: -15 °C(5 °F)Max.: 180 °C(356 °F)
