نام محصول:
انزوا
نام انگلیسی:

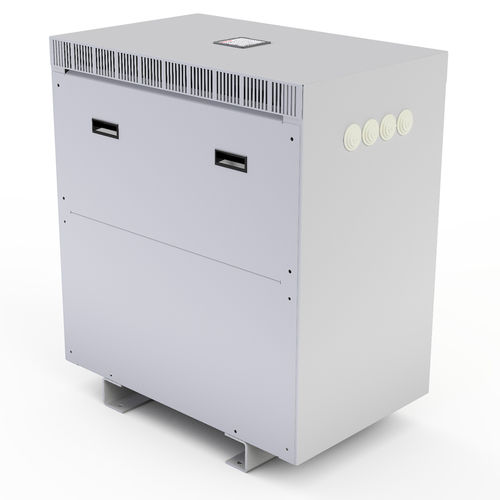

Isolation transformer TTW series
برند:
POLYLUX S.L.
مشخصات:
FEATURES:
TT transformers are used for insulation galvanic three-phase installations for reasons of security.
They are also used in the generation of neutrals referenced to ground in single-phase installations of high power.
Dry type transformer
Anti-flash varnish finish, offering:
• Protection against corrosive environments
• Increase of electrical isolation
• High compression capacity
• Reduction of noise level
• Increase of product’s lifespan
Safety class I
Includes lifting eyebolts from >10 kVA
Possibility of tailor-made manufacturing
APPLICATIONS:
• TT transformers are used for insulation galvanic three-phase installations for reasons of security.
• They are also used in the generation of neutrals referenced to ground in single-phase installations of high power.
• In facilities where there may be small peaks of voltage or noise, the TT transformers help improve the quality of the signal that feeds the charges.
• On the other hand in facilities where there may be several leakage to ground, TT transformers ensure the supply avoiding the tripping of the differential switch general.
AVAILABLE ACCESSOIRES:
• Protections in primary and secondary.
• One, two and up to 3 electrostatic screens.
• Class II
• Wheels.
• PT100, PTC or Bimetallic probes.
• Painting C5.
• Different RAL.
• Temperature control unit
• Anti condensation system
• Different IP up to IP-65
توضیحات:
Type
isolation
Configuration
dry
Applications
industrial, for industrial applications, for machinery
Electrical characteristics
three-phase
Mounting
floor-standing
Norms
IEC
Other characteristics
compact
Output power kVA
Max.: 1,000 kVA(1,359.6212 hp)Min.: 0.63 kVA(0.8566 hp)
Primary voltage
400 V
Secondary voltage
400 V
Frequency
50 Hz, 60 Hz
