نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

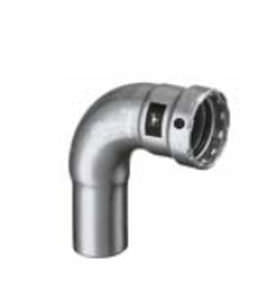

Hydraulic fitting Megapress
برند:
Viega GmbH & Co. KG
مشخصات:

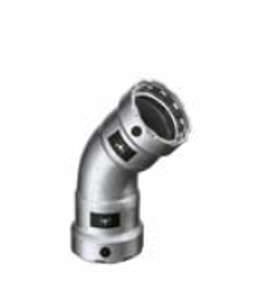

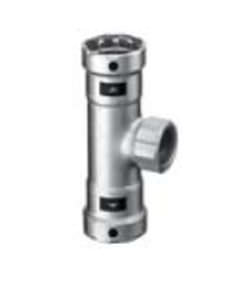

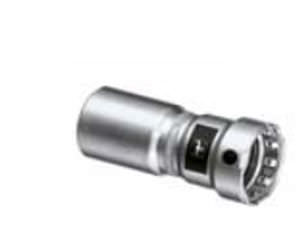

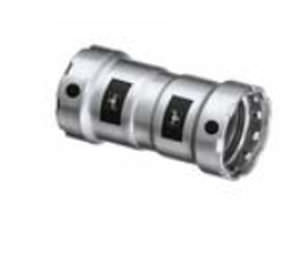

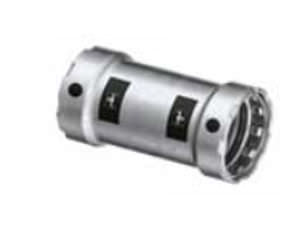

Flow-optimised press connector system made of non-alloy steel 1.0308 with an externally galvanised zinc-nickel coating for black, galvanised, industrially painted and powder-coated steel pipes. Press connectors with stainless steel cutting ring to ensure the mechanical strength of the connection. Suitable for concealed and pre-wall installations of riser pipes and floor installations.
Marking
Manufacturer, pipe dimension, batch, black dot on press end, black rectangle with symbol »Not approved for potable water installations«, orange/black detachable label as press indicator
Sealing elements
EPDM (ethylene propylene diene rubber), profile sealing element , black, pre-assembled
Dimensions
D⅜–2, external Ø 38.0(DN32), external Ø 44.5 (DN40), external Ø 57.0 (DN50), size availability in accordance with the national regulations
Tools
The functional safety of Viega press connector systems depends primarily on the faultless condition of the press tools used. For the manufacture of press connections, Viega recommends the use of Viega press tools. Viega press tools have to be regularly maintained by authorised service partners.
Areas of application
Industrial and plant engineering
Closed cooling and heating systems
Compressed air systems
Fire extinguishing and sprinkler systems (the required minimum and maximum wall thickness have to be observed)
Systems for technical gases (request required)
Note
Use of the system for areas of application and media other than those described must be agreed in consultation with Viega! Detailed information about applications, restrictions and national standards and directives can be found in the product information,
توضیحات:
Applications
hydraulic, for gas
Attachment
cutting ring, crimp
Configuration

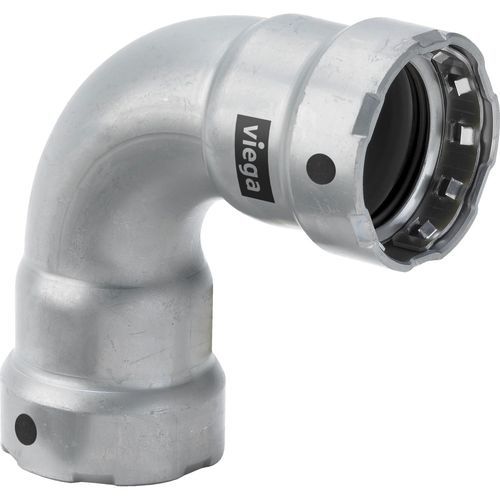

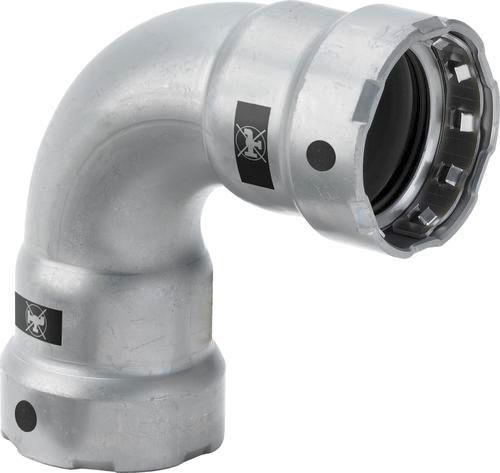

elbow
Material
stainless steel, steel, zinc-plated steel
Other characteristics
poppet, cooling
Diameter
32 mm, 40 mm, 50 mm(1.26 in, 1.575 in, 1.969 in)
Operating pressure
0.3 psi, 14.5 psi, 43.5 psi, 94.3 psi
