4K Full Frame

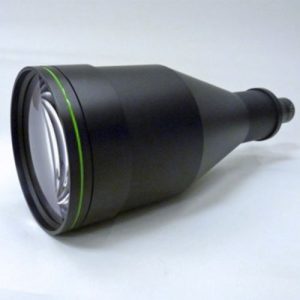

High Magnification ZOOM LENS

ZOOM LENS for Cinematography

PL mount lens for Full Frame format

4K performance over the entire zoom range

Main features

♦ No ramping for T4.8 over the entire zoom range
♦ Optimized optical performance by 3 moving optical groups
♦ Natural blurring of image by 9 Iris blades
♦ Flange back adjustment function
♦ Compatible with standard lens accessories (Gear pitch 0.8mm)

Main specification

Application : Full Frame PL mount Camera
Focal length : 40.6mm ‒ 332mm
T-No. : T 4.8
Sensor size 16:9 Aspect Ratio
046.3mm (Diagonal)
40. 35mm x 22. 70mm
Iris Blades : 9
M.O.D. from image plane : 1.22 m / 4.1 ft
Angular Field of View 16:9 Aspect Ratio
W：40.6mm 53.1°x 30.6°, T：332mm 7.1° x 4.0°
Object Dimensions at M.O.D. 16:9 Aspect Ratio
W：40.6mm 918 x 516mm, T：332mm 111 x 62mm
Focus ring rotation : 280 degree
Zoom ring rotation : 160 degree
Gear pitch : focus, zoom, iris : 0.8mm
Front lens diameter : φ136mm
Length : 413.2mm
Weight : 9.2kg
