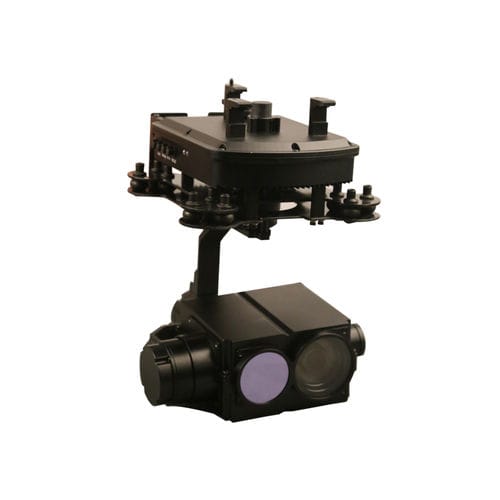

Dual Light Camera Payload KWT-SG-30X

Features
30x optical zoom;
1080P HD output;
Real-time switching of visible and thermal imaging video;
Direct control of drone signals, integrated transmitter for compression encoding and real-time HD output;
Pointing zoom function;
Temperature measurement and temperature alarm function;
The control speed is automatically adjusted according to the focal length to ensure the user experience.

Power supply
Working voltage – DC11V~DC13V
Working current – 2.7A@DC12V

Gimbal
Gimbal tilt angle – -90°~+30°
Gimbal yaw direction – ±165°
Angle control accuracy – ±0.02°
Maximum angular velocity control speed – Pitch: 12°/s, yaw: 12°/s

support 1200~115200 bps
– Encryption – AES128/AES256
HDMI – Version – HDMI 1.4a
– Resolution – 1080P30
Encoding – Audio and video rate – 64,96,112,128,160,192,224,256,320,384Kbps adjustable
– Audio coding – Mpeg1 Layer 2
– Format – YCbCr4:2:0
– Video coding – H.264
– Video bitrates – 500kbps~16.68Mbps adaptive
– Encoding delay (end-to-end) – Minimum 300ms (with low latency receiver)
HD camera – Sensor – 1/2.8 inch, CMOS
– Total pixel – 2.16 megapixels
– Resolution – 1920(H)X 1080(V)
– Optical zoom – F:4.7-141mm
– Aperture – FNO:1.5-4.0
– Video compression – H.265/H.264/H.264H
– HDMI output – Default 1080 P30
– Minimum illumination – Color 0.05Lux/F1.6
– Optical zoom speed – Optical (wide angle – telephoto) 3.0s
Thermal Imaging – Detector type – Amorphous silicon infrared micrometer
– Pixel spacing – 17μm
– Resolution – 640(H)×480(V)
– Response band – 8~14μm
– Lens focal length – 25mm

Physical size – L*W*H: about 207*154*164mm
Weight – 1.6kg ± 0.05kg

Type : zoom, fixed-focus, wide-angle
Technical applications : image capture, machine vision, inspection, measuring, for identification, for security cameras, for biomedical applications
Other characteristics : high-resolution, megapixel resolution, aspherical, day/night, motorized
Focal length : 25 mm (0.98 in)
