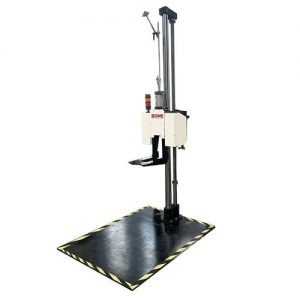

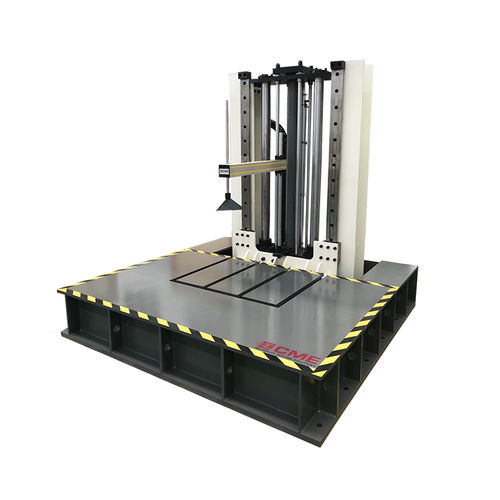

KRD40 series drop tester, mainly simulates the resistance to drop and impact of large and heavy packaging products. Its strong power system and unique sample holder facilitate easy loading and unloading of oversized and overweight items and automatically rise to the setting. After the height, the drop test is completed. It can realize the drop test of the edge, surface and angle of the sample. This equipment is mainly used to evaluate the ability of product or packaging to withstand drops during transportation and loading and unloading, so as to improve product and packaging design.
1. Driven by pneumatic and servo motors, stable lifting process with upper and lower displacement restrictions, safe and reliable;
2. Adopt single-track or dual-track lifting method, and the height can be adjusted arbitrarily;
3. It can clamp and drop the test specimen in different directions such as edges, faces and angles;
4. The testing machine adopts PLC full-automatic control, large size true color touch LCD screen,
5. No special foundation required, no other complicated operation or installation;
6. Remote control can be realized to ensure the safety of operators (customized functions).
Technical Specifications
Max. Load(kg): 200
Drop Height (mm): 0~1500
Max. Specimen Size(mm): 1200×1200×1200
Position accuracy: ±2mm
Single Lift Drop Zone Size（W*D/mm）: 1400×1400
Test Mode: Face, Edge and Angle
Power: AC 380V ±10％ 50Hz
Standards: ISO2248-1985 (E) IEC68-2-27
Test type : zero drop
Tested product : battery, for electrical appliances, for packaging
Applications : universal, laboratory
Other characteristics : automatic, with LCD screen
