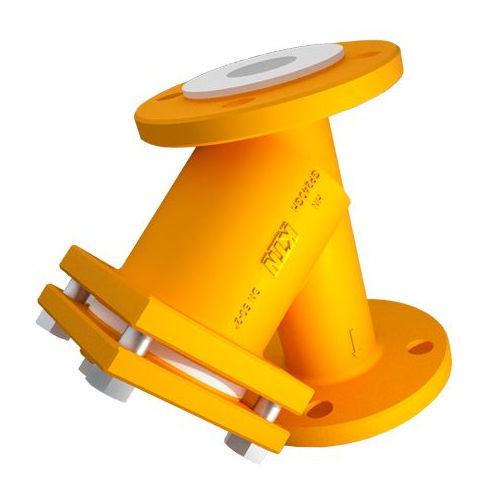

Our filter KTN 62 / 32T can be built in stainless steel 1.4008 (CF8M) or wrought iron GG25, flanged connections DIN / ANSI . Our dimension range covers from DN25 to DN200. The working pressure range is class 150 / PN10. The working temperature is -30ºC to + 230ºC . Specially designed to filter highly corrosive fluids.

FLOW FEATURES

The flow path through the filter insert is a larger area than the original pipe cross-section. This minimizes possible pressure loss

CORROSION RESISTANT FILTER INSERT

The Insert consists of two perforated PTFE cylinders with an ETFE filter screen in between. This design offers the same outstanding corrosion resistant properties as the FEP or PFA lining material. Standard mesh Is 60 (300 micron). Optional mesh: 169 (100 micron); 35 (500 micron); 19 (1,000 micron). Other mesh openings on request.

EASY MAINTENANCE

The filter Insert can be changed or easily cleaned without removing the strainer from the line. For added operator safety and convenience, an optional ball valve may be specified in place of the PTFE plug. The residual fluid In the insert area can be removed by means of the PTFE drain plug. This can be done prior to removing the access flange when changing or cleaning the filter.

Filtration element : Y-strainer
Mounting : flange
Other characteristics : PTFE-lined
Filtration size : 60 µm
