•XYZ Field Scanner for multi-dimensional presentation of field strength distribution in permanently magnetic materials, magnetic systems and components
•Up to three linear movements (x,y,z axes) and one rotational movement
•Multi-phase operated motor for movement of axes
•Motor-operated rotational movement with angle decoder
•Completely computer-controlled measuring system
•Field recording with direction, amplitude and polarity
•Scaleable vector and contour plot up to 3D
•Integration of data into QM systems
•SSQL database for saving the results

Operating principle
Computer-controlled measuring system for multi-dimensional presentation of field strength distribution in permanently magnetic materials, magnetic systems and components.
The measuring system is available in two versions:
A) Desktop version of XYZ table with additional 19“ container to house the measuring electronics
(working height approx. 95 cm).

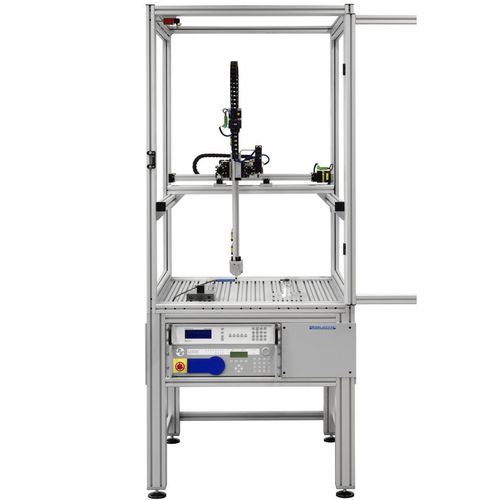

B) XYZ table integrated in a support frame (working height approx. 75 cm).
The measuring electronics are also integrated in the support frame.
The aluminium/stainless steel table is designed for a tri-axial scanning system or a rotational tester. The magnets are held in a fixed position during measurement by a prism.
The system includes a self-adjustment function to the magnetic zero of the system and a zero field chamber for calibrating the field probes.

Number of axes : XYZ
Applications : magnetic field
