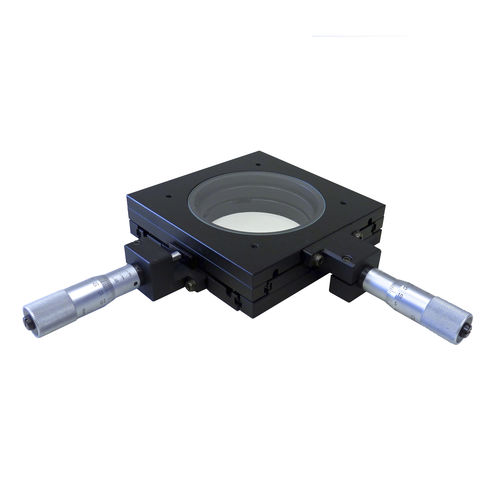

XY positioning stage100-MS25-GAN

Opto´s Measuring Stage 25 x 25mm analog is designed for incident light application.

Technical Features
– Cover plate 135 x 135mm
– Stage height = 35mm
– Maximum load 10kg
– with 2 manual micrometer spindles
Measurement range: 25mm; Resolution: 0.01mm

Opto´s measuring stages are designed solid and highly adjustable when employed. Their precision depends on the supplied micrometers screw of up to 0.001 mm.

All the stages are enclosed in a black finish, and have rubber feet as well as 4 M5 threads in the bottom side for mounting the stages on flat surfaces or tables.

Article number 100-MS25-AN

Orientation : XY
Type : manual
Number of axes : 2-axis
Other characteristics : micrometer-driven, precision, for microscopes, measurement
