XY(Z) Positioning System with Controller • Quickly Available
• XY system made of two V-417 positioners, travel ranges from 204 to 407 mm
• XYZ system with L-412 positioner as Z axis, 102 mm travel range
• Suitable G-901 ACS controller with ACS driver module
• Optional with granite base plate
• Delivery includes extensive test reports
• Extensive accessories, software support available

Integrated multi-axis system – IMAS

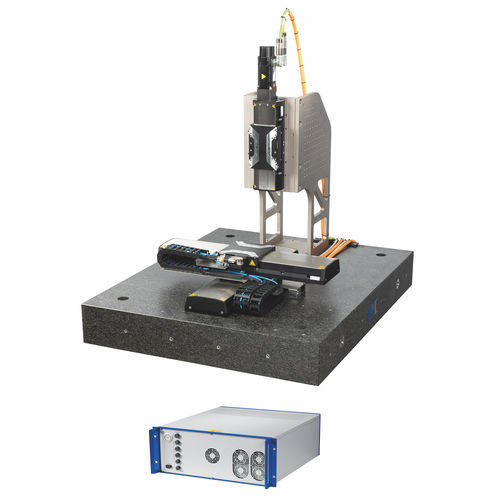

The X-417 multi-axis system is an integrated solution for industrial applications with high demands on dynamics and precision. XY or XYZ systems with suitable ACS high-performance controller from PI are available. The base system is an XY system made of two V-417 high-load linear stages with linear motor and absolute-measuring linear encoder. Combinations of several travel range variants are available: From 204 to 407 mm. The XY systems are also available with a granite plate. With the XYZ systems, an L-412 high-load linear stage with 102 mm travel range, synchronous servo motor, and holding brake is used as Z axis. The XYZ systems are also available with a granite plate as base; for these systems, the adapter bracket for fastening the Z axis to the granite base is included in the scope of the delivery.

Options and accessories
• Base frame
• Breadboard set for granite plate
• Adapter bracket
• Additional cable set for XYZ system: Cable length for X / Y axes 2 m, for Z axis 3 m
• Software support, e.g. for SPS integration

Orientation : XY, XYZ, Z-axis
Type : motorized
Number of axes : multi-axis
Other characteristics : compact, precision, industrial, with controller
Stroke : Min.:
