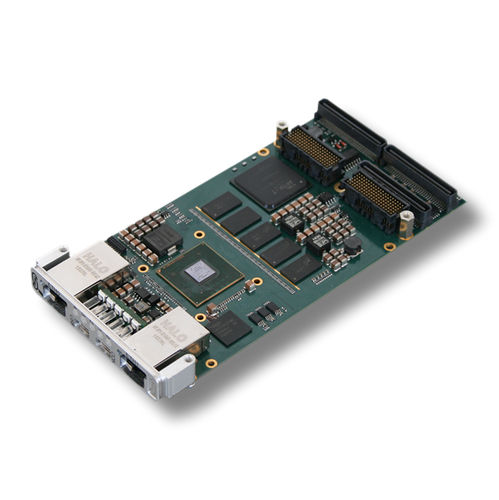

XMC-CPU/T10
XMC/PMC 64-bit PowerPC™ T1022 Processor Board with FPGA

High-End CPU for Test and Application:

• Freescale™ PowerPC QorIQ T1022, 1.2 GHz, 64-bit architecture, Dual Core, Double
Precision Floating Point Unit, Ethernet, ECC-RAM
• Xilinx® FPGA Artix 7 (XC7A75T) for local applications
• RTC
• 2x Gigabit Ethernet, 1x USB 2.0 (Host)
• 62 I/Os at connector PMC-P14 configurable via FPGA as single ended (LVTTL) or 31 LVDS
pairs

Health Features and Fallback Flash:

• Local voltage and temperature monitoring
• Fail save firmware update by means of fallback Flash
• Watchdog
• Over temperature protection

Wide Range of Software Support:

• OS-9, QNX®, VxWorks® and Linux® BSPs available
• Example source code for the FPGA included in the BSPs
• Universal boot loader: U-Boot
• EtherCAT master available

Customization on Request:

• QorIQ T1014 or T1024 or T1042 are applicable
• Additional connector P16 with (e.g.) 73 LVTTL or 34 LVDS I/Os
• MRAM (512 Kbyte)
• Console RS-232 via P14
• CAN (with IRIG-B timestamp) via P14

Bus standard : XMC
Processor : NXP QorIQ™ T1, PowerPC®, dual-core
