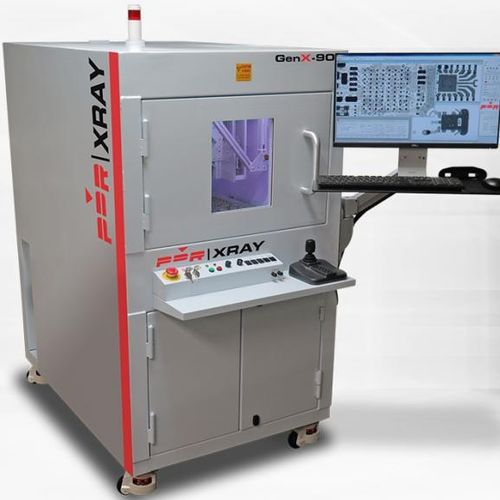

PDR’s New Affordable PCB X-ray Inspection Systems Offer Quality Image Clarity

PDR X-ray Solutions is pleased to announce that its 2D and 2D+ X-ray systems have set a new industry standard for high-quality X-ray images at an affordable price. Choosing the correct system for your requirements such as X-ray for quality control or X-ray for process control is vital for the success of both X-ray circuit board inspection programs as well as X-ray semiconductor inspection programs.

PDR’s 90kV X-ray and 130kV X-ray systems are engineered with high-quality materials and craftsmanship and X-ray safety standards exceeding the most stringent requirements for industrial safety. All X-ray non-destructive inspection systems built by PDR are equipped with a suite of X-ray image processing tools and features that incorporate cutting-edge technologies to ensure that your X-ray system delivers quality X-ray images and the power of analytic tools required for a successful X-ray program.

Surface mount and assembly inspection is vital for providing quality product. PDR’s BGA X-ray defect detection and BGA X-ray inspection starts with high quality X-ray images with outstanding image clarity. This makes possible the highest level of analytical tool outcomes utilizing PDR’s proprietary software to perform a high level analysis of BGA packages, X-ray for solder ball sphere void percentage calculations, solder ball area and roundness (spherocity), as well as analytical tools to address X-ray for QFN package inspection, X-ray for CSP package inspection, and X-ray for flip chip inspection as well as X-ray for QFP package inspection and more…

Technology : X-ray, 2D
Operational mode : automatic
Applications : for PCB
Type : quality, for quality control, surface, BGA
