High-Resolution, Fast In-Vivo Desktop Micro-CT
3.9 seconds shortest scanning cycle
2.8 micron highest nominal resolution
Spiral (helical) and round scanning

DESCRIPTION

Maintenance-free 20-100 kV micro-focus X-ray source, automatic 6-position filter changer,
11 Mp cooled X-ray camera,
Continuously variable magnification with smallest pixel size of 2.8 micron,
Possibility to resolve object details of 5-6µm with more than 10% contrast,
Scanning in circular or spiral (helical) trajectory,
GPU-accelerated and world’s fastest InstaRecon® 3D reconstructions supplied as standard,
Full body mouse and rat scanning, 80mm scanning diameter, >300mm scanning length,
Step-and-shoot and continuous gantry rotation with shortest scanning cycle of 3.9 sec.
Integrated physiological monitoring (breathing, movement detection, ECG) for time-resolved 4D microtomography,
Software for 2D/3D image analysis, bone morphology and realistic visualization,
On-screen dose meter to estimate accumulated dose and dose rate,
Export results to phones and tablets, software for volume rendering and virtual cut on mobiles,
Integrated touch screen to control main system functions by gloved hands,
Export results to 3D printers to create magnified physical copy of scanned objects,
GLP (Good Laboratory Practice) software package.

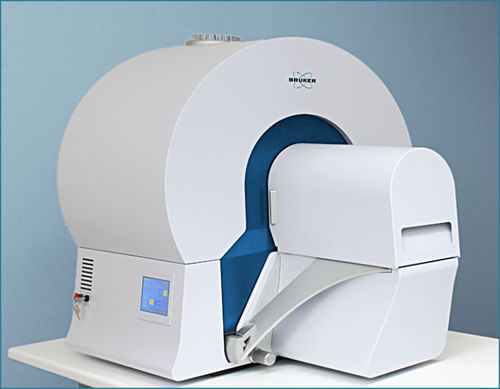

The SkyScan 1276 is a high performance, stand-alone, fast, desk-top in vivo micro-CT with continuously variable magnification for scanning small laboratory animals (mice, rats, …) and biological samples. It has an unrivalled combination of high resolution, big image size, possibility for round and spiral (helical) scanning and reconstruction, and low dose imaging.

Technology : X-ray, computed tomography
