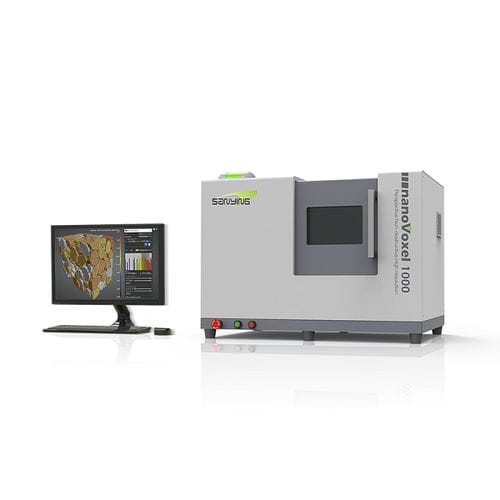

X-ray inspection machinenanoVoxel-1000

nanoVoxel-1000
Compact Desktop CT System
The nanoVoxel-1000 is a desktop CT tomography system carefully built by Sanying based on years of research and development experience in high-resolution micro CT instruments. With 300nm detail resolution capability and a small size, it meets the installation requirements of most laboratories and adapts to the use in the wilderness. It is an economical choice for testing medium- and low-density and medium- and small-size samples.

Features and Advantages
● 300nm of detail resolution
● Desktop design, easy to install
● Tube-sealed ray source, no need for consumables and simple maintenance
● Good seismic isolation design to meet vehicle and shipboard use

Resolution
Detectability : 300nm
Spatial resolution* : 2μm

X-ray source
Tube type : Sealed
Voltage : 110KV

Detector (Flat panel)
Imaging area : 145mm×114mm
Pixel matrix : 2940×2304

Sample
Maximum size : 300mm×200mm(diameter × height)
Maximum weight : 15kg

Equipment
Dimension : 900mm×500mm×660mm（length × width × height）
Weight : 500kg

Technology : X-ray, CT, 3D, NDT
Sector : for the electronics industry, industrial, multi-function
