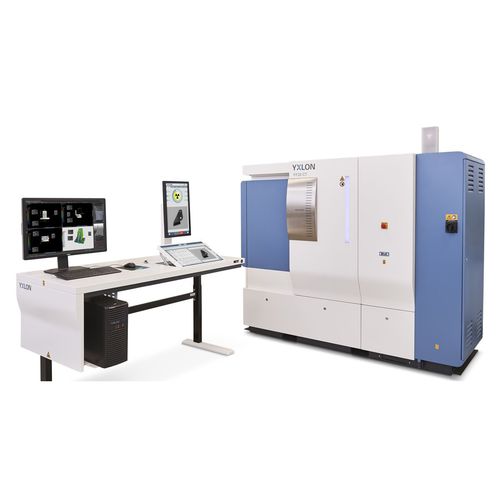

X-ray computed tomography systemYXLON FF20 CT

High Resolution Industrial CT System for Small Parts InspectionThe YXLON FF20 CT computed tomography system is designed to achieve the best 3D inspection results at very high resolution. Whether for R&D, defect analysis, process monitoring, or CT metrology, the FF20 CT is ideally suited for inspection of a variety of small/smallest scale components from the electronics and material science industries.2D detail visibility of up to 150 nm with new water-cooled 190 kV transmission tube Temperature stability with granite based manipulationInnovative and intuitive touchscreen operation for quick inspectionApplication flexibility using trajectories such as helical CT scan, horizontal field of view extension, virtual rotating axis, and standard Quick/QualityScanPrecise metrology MPESD = 3,9 µm + L/75, measured as a deviation of sphere distance referring to VDI 2630-1.3

Options : X-ray
