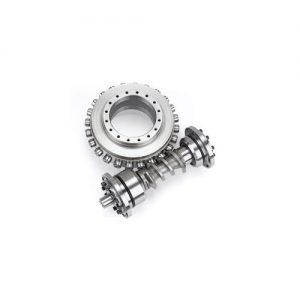

ATLANTA HT-High Torque Servo Worm Gear Units
have been specially developed for use with the latest three-phase and DC servo-motors.
The following are typical features of our HT-Servo Gear Units:
Backlash: <1 arcmin, adjustable 4 sizes: centre distance 50, 63, 80 and 100mm 8 ratios: 4.75; 6.75; 9.25; 14.5; 19.5; 29; 39; 50 and 52:1 Output torque: from 90 to 1700 Nm Output hollow shaft: Interface according EN ISO 9409-1-A clamp connection generously dimensioned and supported for high additional forces Highest rigidity Highest precision ATEX design available Type : worm Shaft orientation : perpendicular Performance : high-torque, high-torque Applications : for shaft Rotational speed : Min.:
