The right drive solution for every challenge:

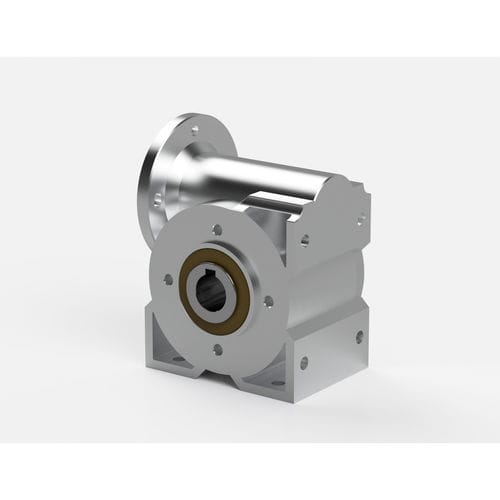

Experience our new modular worm gear, which offers a variety of mounting options and can therefore be adapted to all your needs.

With the preconfigured basic components based on our many years of experience, you can implement your drive task particulary quickly.

Should your application make special demands on the drive unit, we naturally offer you competent advice and will be happy to assist you in configuring your drive unit

Basic version:
– Aluminium casting housing
– Hollow shaft Ø15
– Ratios: 7; 10; 20; 24; 30; 50; 55
– Permissible torques: 11-13 Nm

Customising – Optional equipment:
– Plug shaft on both sides Ø10x30mm gen. 5×20
– One-sided plug shaft Ø10x30mm gen. 4×20
– Big flange Ø100/Ø80/Ø60mm
– Complete drive units as three-phase, direct current or 24VDC permanent magnet motors

Type : worm
Shaft orientation : right angle
Torque : 10 – 20 Nm, 5 – 10 Nm
Shaft configuration : hollow-shaft, solid-shaft
Number of stages : single-stage
Performance : maintenance-free
Applications : for industrial applications, for electrical drives, for food industry machinery
Other characteristics : modular, custom, with flange, flange, aluminum
