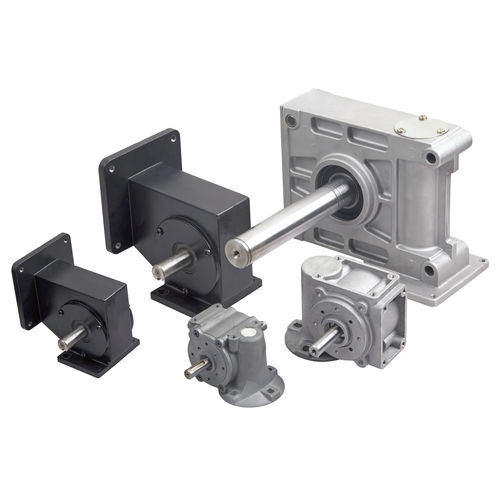

Worm gearboxJW Series

DYD Worm Gearbox Series
Worm Gearboxes, Right Angle Gearboxes

Gearbox Dimensions: Φ30mm ~ Φ200mm
Gear Ratios: 5:1 ~ 150:1
Matched Motor: Brushed DC motor; Brushless DC motor; AC motor; Stepper motor; Servo motor

Type : worm
Shaft orientation : right angle
Torque : 50 – 100 Nm, 200 – 500 Nm, 100 – 200 Nm, 500 – 1000 Nm, 20 – 50 Nm, 0.5 – 1 Nm, 1 – 5 Nm, 10 – 20 Nm, 5 – 10 Nm, 0 – 0.1 Nm, 0.1 – 0.2 Nm, 0.2 – 0.5 Nm
Shaft configuration : hollow-shaft
Performance : low-noise, high-performance, high-torque, high load capacity
Applications : transmission
Other characteristics : industrial
Rotational speed : Min.:
Power : Min.:
