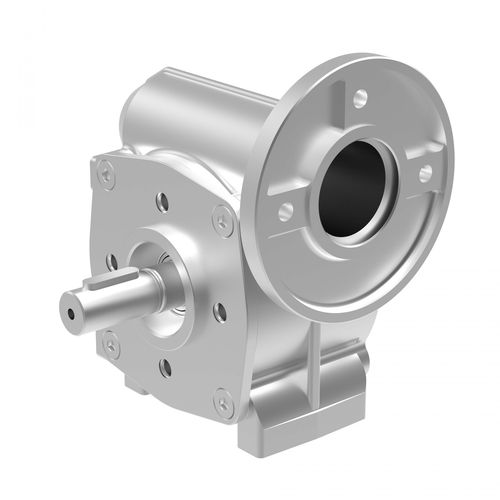

Worm gear reducerSN22,6

Worm gears are used when, for reasons of space, an output shaft offset in order of 90° to the motor axis is required. This type of gear is also quite compact. Thus, a gear ratio of 60:1 and more is already possible in the single-stage variant. Worm gears are one of the few types of gears that allow self-locking where it is needed. For decades, many door application manufacturers have relied on our gear solutions.

Type : worm
Shaft orientation : right angle
Torque : 1 – 5 Nm
Other characteristics : custom
Rotational speed : Min.:
