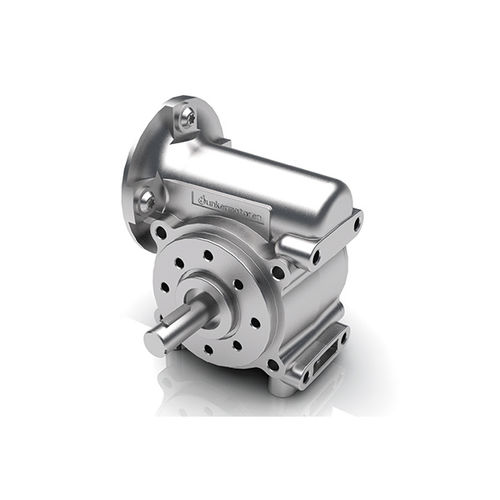

Worm gear reducerSG 80

» Housing made of high-tensile zinc die-cast
» Worm wheel made of brass
» Output shaft with ball bearings on both sides, shaft output to the left
» Optionally with output shaft to the right or double shaft output on demand

Gear ratio – 5 : 1
Number of stages:1
Nominal output torque Ncm:200
Max. efficiency – %:70
Max. axial load – N:300
Max. radial load – N:350

Type : worm
Shaft orientation : right angle
Torque : 1 – 5 Nm
Applications : for shaft
