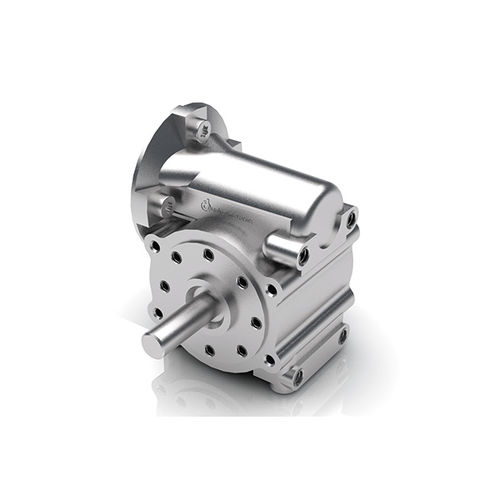

Worm gear reducerSG 62

» Housing made of high-tensile die-cast
» Worm wheel made of brass
» Standard output shaft with ball bearings on both sides, shaft output to the left
» Shaft output to the right or double shaft output on demand

Gear ratio – 8 : 1
Number of stages :1
Nominal output torque Ncm:150
Max. efficiency – %:60
Weight of gearbox kg:0.3
Max. axial load – N:150
Max. radial load – N:250

Type : worm
Shaft orientation : right angle
Torque : 1 – 5 Nm
Applications : for shaft
