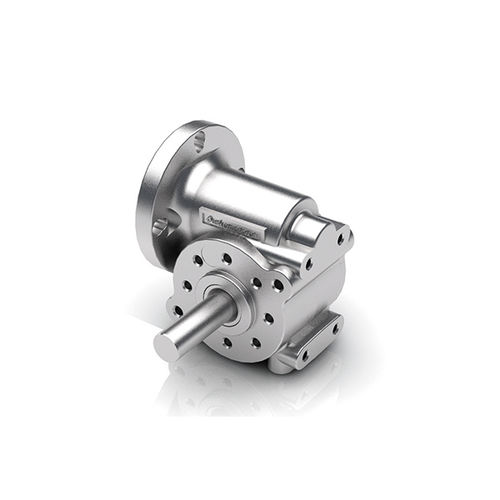

Worm gear reducerSG 45

» Housing made of high-tensile zinc die-cast
» Worm wheel made of brass
» Standard output shaft with both sides ball bearings, shaft output to the left
» Shaft output to the right or double shaft output on demand

Gear ratio – 5 : 1
Number of stages:1
Nominal output torque Ncm:75
Max. efficiency – %:79
Weight of gearbox kg:0.2
Max. axial load – N:100
Max. radial load – N:200

Type : worm
Shaft orientation : right angle
Torque : 0.1 – 0.2 Nm, 0.5 – 1 Nm, 0.2 – 0.5 Nm
Applications : for shaft
