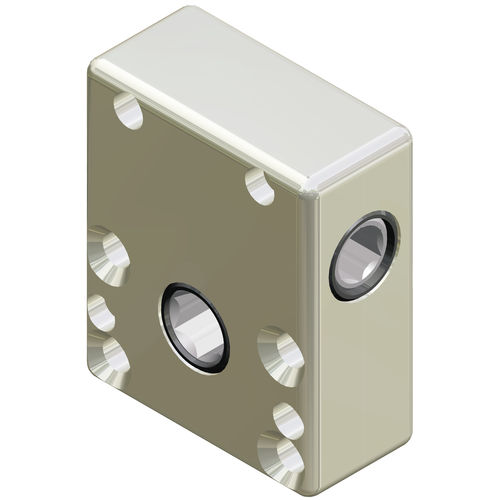

Worm gear Input narrow side 4748 … 4767

Compact, universally usable and maintenance-free worm gearbox in a size
with an axle distance of 14 mm and various reduction ratios. The drive
is located on the narrow side of the gearbox. The worm wheel assembly
is right-handed. The direction of rotation on the shaft is arbitrary.
The gearbox is characterised by a compact design with maximum torque,
sturdiness and smooth power transmission. Simple mounting is made
possible by a flexible screw fixing.

Special features
Maintenance-free grease lubrication
Case hardened worm and cog wheel

Housing made of zinc die-casting
Special model with bronze bearing
Size 42 x 35 x 17 mm
8 ratios as standard
On request other ratios are possible
Axial distance 14 mm
Input / Output hex 6 mm
On request also with counterclockwise-ascending worm and wheel set

Shaft orientation : right angle
Torque : 1 – 5 Nm
Shaft configuration : hollow-shaft
Other characteristics : compact, manual
