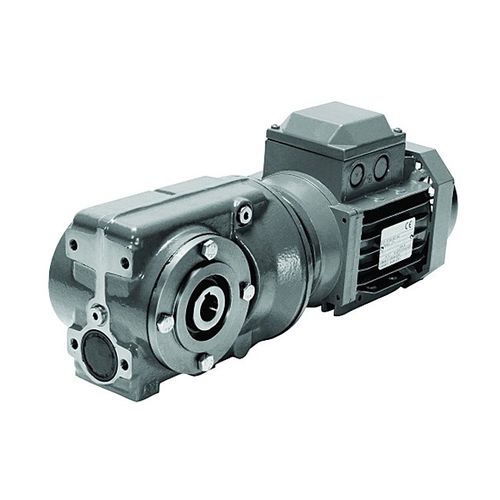

Series C – Helical worm geared motor

Series C right angle helical worm geared motors and reducers provide a highly efficient and compact solution to meet requirements

The Series C range of helical/ worm units forms a part of a long line of power transmission drives which are known for their top quality design and technical solution, along with the use of high quality materials and components.

The 8 sizes of this type of geared motors and reducers offer high load carrying capacity, increased efficiency, quiet running and reliability.

These units are manufactured and assembled from a family of modular kits for distributor friendliness thereby minimizing inventory and making the product readily available.

Available with plug in output shaft and bolt on flanges, add flexibility to the range

Can be supplied as double, triple, quadruple and quintuple reduction units in flange or foot or shaft mount execution. Available as motorised, motor ready (to accept clients own IEC/ NEMA motor) or as a reducer with a keyed input shaft.

All gear cases are cast iron.

Motor type : DC
Type : worm, helical
Shaft orientation : right angle
Power : 100 W…500 W, 10 W…50 W, 50 W…100 W, 0 W…10 W, 500 W…1000 W, 1 kW…2 kW, 2 kW…5 kW, 5 kW…10 kW, 10 kW…20 kW, 20 kW…50 kW
Torque : 0.1 – 0.2 Nm, 1 – 5 Nm, 5 – 10 Nm, 5 – 10 kNm, 10 – 20 Nm, 20 – 50 Nm, 0.5 – 1 Nm, 0.2 – 0.5 Nm, 50 – 100 Nm, 100 – 200 Nm, 1 – 2 kNm, 0 – 0.1 Nm, 500 – 1000 Nm, 200 – 500 Nm, 2 – 5 kNm
Product applications : flange
Other characteristics : compact, modular, cast iron
