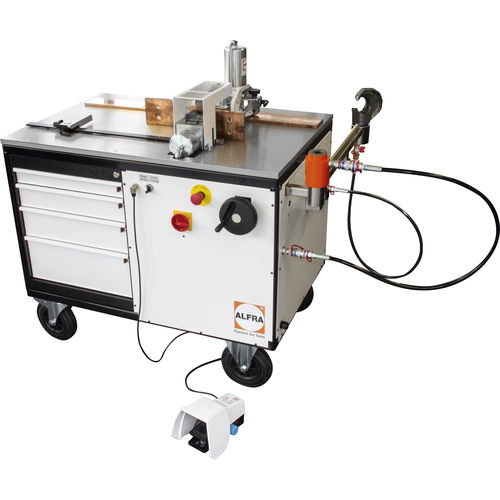

for bending busbars at 120 x 12 mm,
– for perforating busbars Ø 6.6 – 21.5 mm,
– for cutting busbars 125 x 12 mm,
– two additional hydraulic outputs for various applications

■ The processing stations for busbar cutting and hole punching and
for cutting are recessed in the table. This enables quick, clean working.
■ You can use a hand wheel to infi nitely variably raise and lower the
universal working cylinder by hydraulic power according to the hole
pattern to be punched.
■ The processing devices are connected to a hydraulic central unit fi tted
to the inside of the trolley.
■ A support extension, which can be pulled out of the side, is provided as
a support for longer rails.
■ Press heads (e.g. press head 10 – 300 mm2 Prod.-No. 03360) and hydraulic
cylinder Prod.-No. 02012 can be connected to 2 hydraulic hoses
fi tted to the side for hole-punching.
■ 1 footswitch including connecting cable is included in delivery. Up to 3
additional foot switches can be connected to the various stations.
■ 4 tool drawers with compartments for punches and dies are fi tted to
the trolley.
It runs on 4 casters, 2 of which have a locking device.

Technical data:
Motor voltage: 230 V / 50 Hz
Motor power: 2.2 kW
max. operating pressure: 700 bar
Flow rate: max. 1.7 l/min.
Tank volume: 3.2 l
Usable oil volume: 2.2 l
Weight approx.: 240 kg
Table size: 1,150 x 700 mm
Dimensions L x W x H: 1,250 x 760 x 1,210 mm

Configuration : workshop trolley
