PH Cell
Best ergonomics and accessibility to the working area due to side loading
Modular automation concept with up to 40 storage locations
Handling of different pallet sizes in one system – 320 x 320; 400 x 400 and 500 x 500 mm
Up to 300 kg transfer weight (workpiece incl. pallet)
Subsequent expandability of the second shelf module
Separate set-up station for ergonomic and parallel rusting of the pallets
Attractively priced automation in DMG MORI VERTICO design

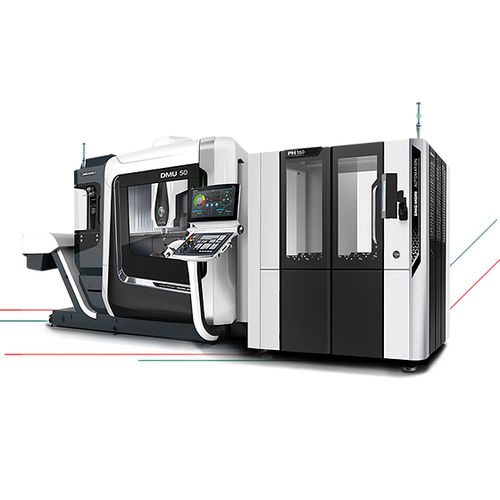

PH 150
Operation directly via the machine control, no additional external control
Handling of workpieces up to 500 × 500 × 400 mm and weight up to 250 kg
Cost-effective automation solution with quick return of investment
Flexibility and adaptability for customer requirements
Wide range of available options with different pallets and magazine configurations
Zero-point system ensures high clamping repeatability of pallets
Machines
PH Cell is available for: DMU 65/75 monoBLOCK, DMU 50 3rd Generation, DMU 40/60/80 eVo, DMU 85/95 monoBLOCK, DMU 80/90 P duoBLOCK, DMC 650/850 V
PH Cell is available on request for: CMX 50/70 U, CMX 600/800/1100 V
PH 10 is available for: HSC 20 linear, ULTRASONIC 20 linear, Lasertec 20 PrecisionTool
PH 150 is available for: CMX V product line, DMC V product line, CMX U product line, DMU 50, DMU 65 monoBLOCK, DMU 75 monoBLOCK, DMU 85 monoBLOCK, DMU 95 monoBLOCK, DMU eVo product line, HSC linear product line, DMU 60 duoBLOCK, DMU 80 duoBLOCK, DMC 60 H linear, ULTRASONIC 65 monoBLOCK, ULTRASONIC 85 monoBLOCK, LASERTEC 75 Shape
Product applications : workpiece, pallet
