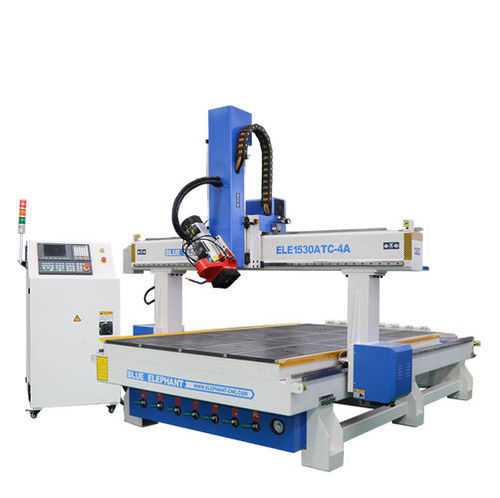

ELECNC-1530 4 Axis ATC Woodworking Machine has an ATC system for quick tool changing and management, and the 4th axis spindle for 3D wood sculpture and engraving; It Adopts global famous CNC kits and mainly used for wood carving, cabinet making, doors making and other complex woodworking.

Model ELECNC-1530
PriceNegotiation
Rating 4.0 /5 based on 28 ratings and reviews
X,Y,Z Working Area 1500x3000x400mm
Table Surface Vacuum and T-slot working table, 6 zones
X, Y Structure Rack and Pinion Drive, Taiwan PMI 25# Linear Square Rail;

Features
1. With a Linear type tool changer, this machine can change more than 8 tools automatically in the engraving process;
2. The spindle can swing to 180 degrees which makes the machine can process 3D and 4D objects;
3. Made with a heavy-duty frame and gantry, the machine has a stronger structure;
4. All the specifications can be customized according to your own actual processing needs;

Material : wood
Other characteristics : CNC, 3D, gantry, 4-axis
X travel : 1,500 mm (59 in)
Y travel : 3,000 mm (118 in)
