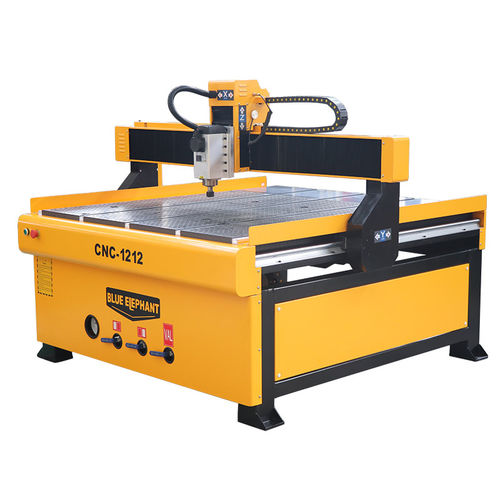

Wood copy routerELECNC-1212

1.Model:ELECNC-1212
2.Working size:1200*1200*160mm ( can be customized )
3.Working Voltage:220V,1phase,50-60HZ ( can be customized )
4.Control system:Mach 3 control system
5.Spindle:3.5KW china HQD brand air cooling spindle
6.Spindle speed:24000rpm
7.Motor & Driver:Stepper motor 450A with Leadshine M542 drivers
8.Lubrication system:Manual lubrication system
9.Vacuum pump:2.2kw JQT air vacuum pump,220V,1phase
10.Ball screw:TBI ball screw
11.Woeking table:T-slot working table with pvc protection working table

Materials to be tapped : for wood
Other characteristics : 3-axis
X travel : 1,200 mm (47 in)
Y travel : 1,200 mm (47 in)
Z travel : 200 mm (8 in)
Rotational speed : 24,000 rpm (150,796 rad.min-1)
Power : 3 kW (4.08 hp)
