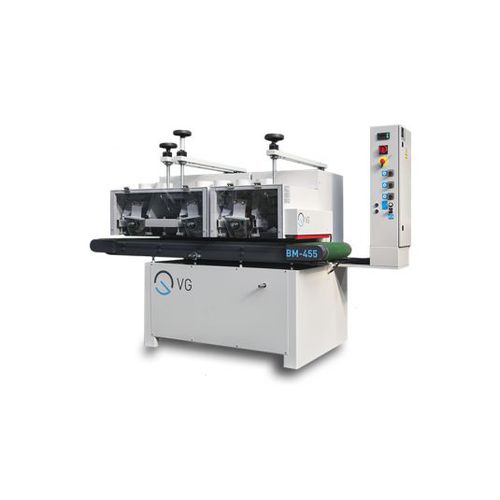

Wood brushing machineBM series

a simple adjustment and changing of the brush
spindle Ø 50 – n = 1900 rpm / T-650: 1450 rpm
with the feed (or against the feed optional BM22)
in front and behind the brush unit there is a rubberised pressure roller which ensures a smooth feed through
the brush is adjustable in height separate to the feed rollers
speed of high quality non-slip conveyor belt: 5 & 10 m/min or variator 3-10 m/min (optional
BM33.1)
min. grinding length of components with a brush of 200 is 240 mm
working piece height: max. 200 mm
working height: 850 mm (fixed table)
delivered WITHOUT brushes
VG can also supply specially sized machines to meet clients’ requirements for example:
* with additional brushes
* with different sized diameter of brushes
* with magnetic table
* with extra height under brush
* for working with shorter components
* in combination with grinding units

Options : wood, roller
