The outstanding parameters with regard to the frequency linearity and the responsivity render this antenna a very useful equipment for broadband measuring devices for the definition of the total exposure to high frequency radiation.
Frequency range: 27 MHz to beyond 3.3 GHz.
Description
■ From 27 MHz to beyond 3.3 GHz*: For the measurement of the primary high frequency ranges: CB and amateur radio, directional radio, TV and radio (digital and analogue), TETRA, GSM, radar, DECT, UMTS, WLAN, and more.
■”Overall (non-directional) reception”: Horizontal isotropic directional pattern – a fundamental feature for long-term measurements.
■Compact construction: Identifies so-called “hot spots”.

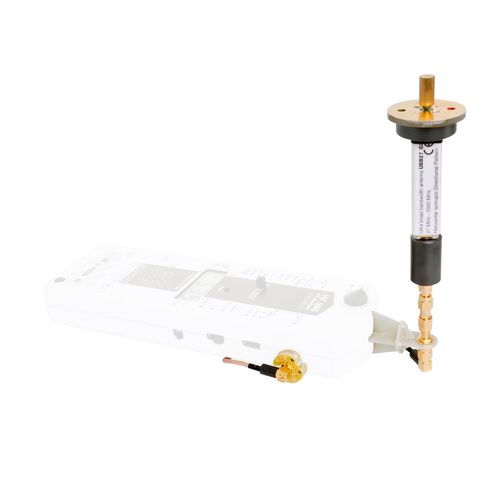

■To be attached directly onto the HFE35C or the HF59B.
■* Limited in real terms by the frequency response and specifications of the respective HF analyser.
Scope of Supply
Ultra-broadband antenna
SMA-right angle plug
Tightening aid
Detailed instructions manual
Network : radio, WLAN, broadband, GSM, radar, CB
Type : directional
Other characteristics : compact, isotropic
Applications : measurement
Frequency : Min.:
