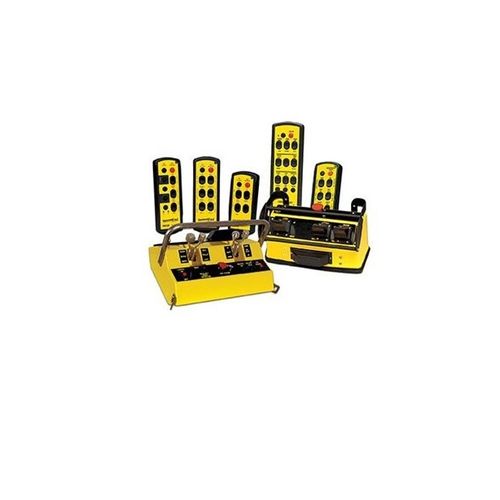

The Remtron product line offers a variety of machine control units used for wireless remote control of cranes and machine control.
HIGHLIGHTS
Available with standard or customized functionality
Compatible with all Remtron™ controllers
Can be configured with a RAC16 programmer, setting the system address and frequency
Rugged and compact NEMA 4, protection class, industrial enclosure
8 to 43 function plus analog (option), alarm and stop, compatible with contactor or Variable Frequency Drive
Interface
8 to 43 function relays + analog (option), alarm and stop, compatible with contractor or VFD systems
Housing
NEMA 4 protection class industrial enclosure
Installation
Screw terminal connections
Frequencies
902-928 MHz license exempt frequency band
Compliance
Compliant with UL508 Electrical Safety
Power Supply
120/240 V ac, 24VAC, 12-24VDC (optional)
Antenna
External antenna
Warranty
Standard one-year product warranty
Pitch & Catch
Multiple operators can control a single receiver, pitching control seamlessly between operators
First-Come/First-Serve
Multiple operators can control multiple receivers using selector switches to select appropriate receiver
Utility Mode
Non-maintained link operation. Does not require an On or Off button
Controlled Range
Limits operational distance from 30 to 100 feet (R22, R30, and R44 only)
Enclosures
NEMA 4X Fiberglass or NEMA 4X Stainless Steel
Automatic Safety Override (ASO)
Monitors motion control relays to ensure relay opening and closing occur as requested (R22, R30 and R44)
Analog Controls
Range of -10 to +10VDC (R22, R30, and R44 only)
Magnet Control Package
Type : wireless, analog
Applications : remote control, industrial
Other characteristics : compact, rugged
