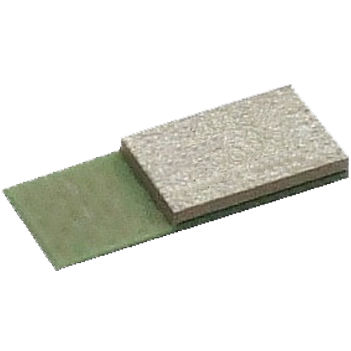

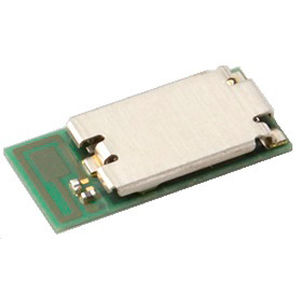

Wireless moduleEYSHSNZWZ

Key Features
Bluetooth® Version: 5.0 (2Mbps mode)
Frequency: 2402 to 2480 MHz
Output power: +4dBm typ.
Single power supply: 1.7 – 3.6V
Single Mode Bluetooth® low energy
Integrated System Clock
Integrated high performance Pattern antenna
ARM Cortex M4F 32bit processor and 512KB flash and 64KB RAM
Interface: SPI, UART, I2C, I2S, PDM and 12bit ADC
Outline: 3.25 x 8.55 x 0.85 mm
Bluetooth® and Japan, FCC, IC qualified
ETSI EN 300 328 v2.1.1 conducted test report available
RoHS compliant / Complete Lead Free

Options : HF
Applications : for aerospace applications
