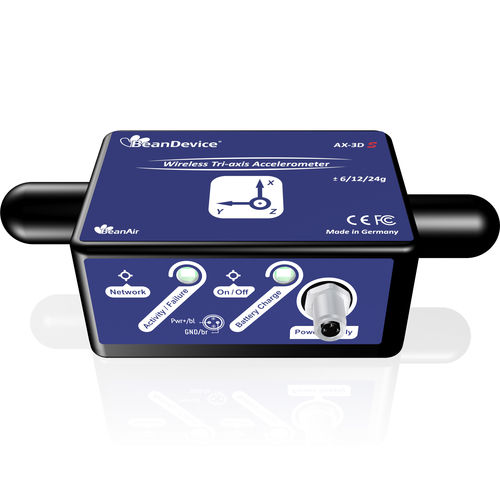

Available in several versions (measurement range: ±2/4/8g or ±6/12/24g), the BeanDevice® 2.4GHz AX-3DS is a wireless accelerometer dedicated to shock measurement with integrated data logger.
The SSD (Smart Shock Detection) technology allows the BeanDevice® 2.4GHz AX-3DS to wake up from a deep sleep mode whenever a shock event is detected and transmits instantly measurement data to the BeanGateway® 2.4GHz (Wireless Coordinator). With a wakeup time less than 10ms, the BeanDevice® 2.4GHz AX-3DS can quickly track and monitor any type of shock event. The user can configure the shock threshold and time hysteresis from the highly versatile BeanScape® 2.4GHz monitoring software.
Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum casing (80x55x21mm, 155g), an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a tiny radome omni antenna enabling a maximum wireless range of 500 meters (L.O.S.), this wireless accelerometer is well suited for all types of industrial applications.
While the vast majority of wireless sensors are not suitable for harsh industrial environment, the BeanDevice® 2.4GHz AX-3DS integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances.

Number of axes : triaxial
Technology : MEMS
Other characteristics : rugged, compact, waterproof, for harsh environments, wireless, ultra low-power, with smart shock detection, IP67, industrial, digital output
Acceleration range : Min.:
Frequency : Min.:
