Wire-wound resistorASTRO5

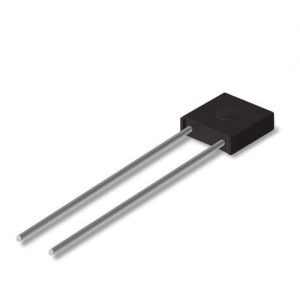

Precision Resistor ASTRO5 – wirewound

Radial-wired resistor with wide resistance range of 0.01Ω..1MΩ and tolerance up to ±0.005%

Resistance range of 0.01…1MΩ
Exact values up to 0.005% resistance tolerance
Temperature coefficient up to ±10ppm/°C
Very long-term stable ±100ppm/year

ASTRO5 precision resistors were developed for critical and demanding applications, which require a high precision and stable resistance value. Multi chamber (bifilar) windings secure a low inductance. During the production process the resistors are trimmed in a special aging process, which increases the long term stability. Windings and the Epoxy coating are especially selected to guarantee the best temperature behaviour. Typical applications are measurement devices, laboratory instruments but also current sensing or low power applications.

Resistance range of 0,01..1MΩ
Exact values up to 0,005% resistance tolerance
Temperature coefficients up to ±10 ppm/°C (on request up to ±1ppm/°C)
Resistance sets up to ±0,001% and ±0,5 ppm/°C
On request, special lead wire bending
Very stable for a long time ±100 ppm/year (on request in a very stable version with ±20ppm/year)
On request with Balco or platinum connectors for high TC values
On request in very high or low TC configurations from -20ppm/°C to +6000ppm/°C

Technology : wire-wound
Mounting : radial-lead
Electrical characteristics : low-power
Applications : current-sense, for laboratories
Other characteristics : precision
Resistance : Min.:
Power rating : 0.5 W
