Wire-wound resistorASTRO2

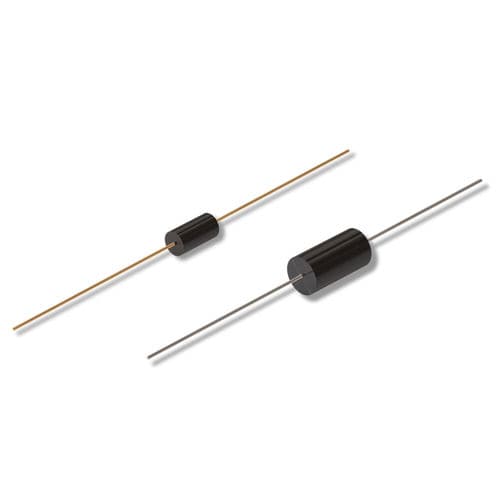

Precision Resistor ASTRO2 – wirewound

Wired resistor with extreme wide resistance range of 0.01Ω..6MΩ, tolerance up to ±0.005% and max. working voltage of 900V

Resistance range of 0,01..6MΩ
Exact values up to 0,005% resistance tolerance
Temperature coefficient up to ±10ppm/°C
Very long-term stable ±100ppm/year

ASTRO2 precision resistors were developed for critical and demanding applications, which require a high precision and stable resistance value. Multi chamber (bifilar) windings secure a low inductance. During the production process the resistors are trimmed in a special aging process, which increases the long term stability. Windings and the Epoxy coating are especially selected to guarantee the best temperature behaviour. Typical applications are measurement devices, laboratory instruments but also current sensing or low power applications.

Resistance range of 0,01..6MΩ
Exact values up to 0,005% resistance tolerance
Temperature coefficients up to ±10ppm/°C (on request up to ±1ppm/°C)
Resistance sets up to ±0,001% and ± 0,5ppm/°C
On request, special lead wire bending
Very stable for a long time ±100 ppm/year (on request in a very stable version with ±20ppm/year)
On request with Balco or platinum connectors for high TC values
On request in very high or low TC configurations from -20ppm/°C to +6000ppm/°C

Technology : wire-wound
Mounting : axial-lead
Electrical characteristics : low-inductance
Applications : current-sense, for laboratories
Other characteristics : precision
Resistance : Min.:
Power rating : 1.5 W
