PCI Standard Programmable Resistor Cards
PCI programmable resistor cards
Includes Programmable Resistors and Potentiometers
Suitable for Sensor Emulation Applications
Selected Builds Available with Addition of Uncommitted Relays
Programmable by Resistance Calls or Controlling Individual Resistor Bits
Visa and Kernal Support for PCI Environments
Pickering’s PCI Standard Programmable Resistor Cards include fully programmable resistor and potentiometer cards for applications such as sensor emulation that require fine adjustment with a resolution down to 0.25 Ohm. All of our Programmable Resistor Cards can easily be formed to make Programmable Potentiometers by connecting two channels in series, using the unconnected terminals as the A and B connections and the link between the two channels as the wiper connection. For applications with more demanding accuracy and resolution requirements, consider our Precision Programmable Resistor Cards.

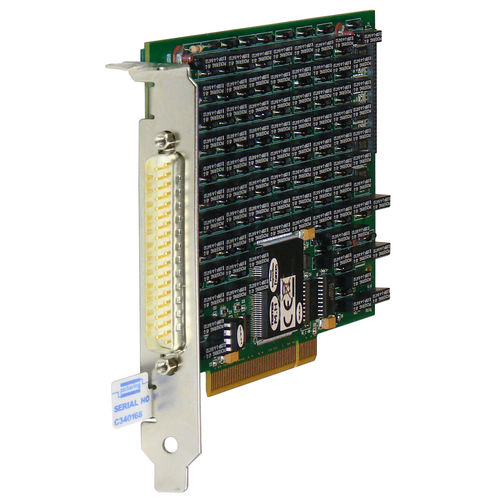

High Density Resistor Card
Configurable to 8, 12, 16 or 24-Bit Resolution
Up to 18 Channels of 8-Bit Resolution
Up to 10 Channels of 16-Bit resolution
Provides Fully Isolated Variable resistors
Configurable as Adjustable Resistor or Potentiometer
Built-in Non-volatile Parametric Memory for Calibration Data
Uses High Reliability Pickering Reed Relays for Maximum Performance
Up to 2000 Value Changes Per Second
Special Versions With Non-Standard Resistors Built to Order
VISA, IVI and Kernel Drivers Supplied for Windows and Soft Front Panel
3 Year Warranty

Technology : wire-wound
Mounting : standard, built-in
Electrical characteristics : adjustable, variable
Other characteristics : precision, calibration, programmable
Resistance : Min.:
Power rating : 0.5 W
