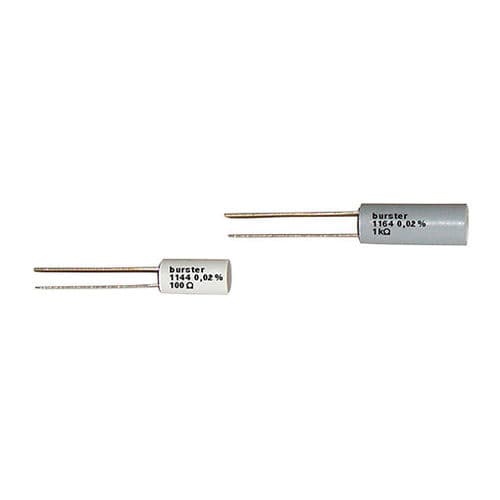

Precision resistors are used wherever the highest standards of temperature stability, error tolerance and durability are required.
Models 1164 and 1166 are available for higher loads up to 1 W.
The resistors are supplied with two connections on the front end (suitable for mounting on circuit boards).
The precision resistors comprise low-capacitance, low-inductance wire coils made of MANGANIN®, which are encapsulated in small plastic cylinder housings.
Prior to trimming, the resistance bodies are exposed to a meticulous artificial aging procedure. This special process and trimming to approximately half of the nominal tolerance guarantee long-term stability of < 0.02% over the course of years. Features: - TK ≤ 10 ppm/K - Klasse ± 0,02 % bzw. ± 0,05 % - Fertigungsbereich von 5 Ω ... 100 kΩ - Widerstandsmaterial MANGANIN® - Standardwerte ab Lager - Widerstandswerte nach Kundenwunsch - Mindestbestellmenge je Widerstandswert 10 Stück Technology : wire-wound Mounting : board-mount Electrical characteristics : low-inductance Other characteristics : high-accuracy, high-precision Resistance : Min.:
