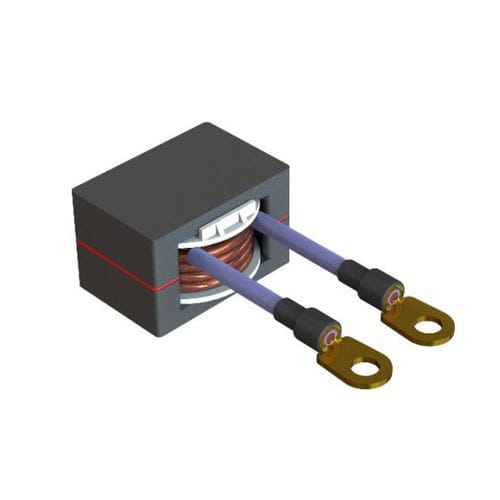

Wire-wound inductorRINDZ14R-14

Lvalue: Lzvs = 14µH @0-14Apk
Power: 2-3kW ZVS 100kHz
DCR wdg: 12mΩ MAX @25°C

Suitable for Automotive DCDC onboard HV/LV converters
Serial ZVS choke for 2-3kW full-bridge converter
Typical switching frequency 100kHz
Basic insulation level between winding and core up to 3kV
UL94 and RoHS materials (F/155°C)
AEC-Q200 qualified
Weight: approx 60grams

FEATURES

> Serial ZVS choke for 2-3kW full-bridge converter
> Typical switching frequency 100kHz
> Basic insulation level between winding and core up to 3kV
> UL94 and RoHS materials (F/155°C)
> AEC-Q200 qualified
> Weight : approx 60grams

Technology : wire-wound
Electrical characteristics : power
Applications : for DC/DC converters, for automotive applications
Primary current : 14 A
