FOR MULTIPLE OUTPUT REGULATORS WE CAN SUPPLY ALL NECESSARY INDUCTANCE VALUES ON ONE CORE. This technique provides minimum possible size and gives excellent dynamic and DC cross-regulation. Contact factory for these special inductors.
Handle large transient DC currents
Minimum possible size
Manufactured to MIL-PRF-27, Grade 5, Class S.
Special high frequency core material to insure low losses
All units have split windings
Large selection of sizes available

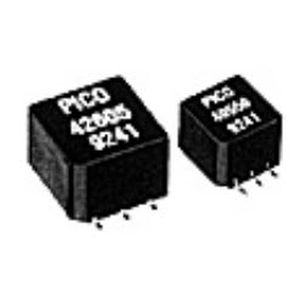

All Inductors have split windings (except size AA)– ratings shown in table are for series connection. Parallel connection will have 1/4 inductance at twice the DC current and 1/4 the DC resistance, ie. parallel connection of PICO 69010 will have 32.5 microhenry with DC resistance of .015 Ohms at 6 Amps DC current (10% drop in L)
Technology : wire-wound
Electrical characteristics : shielded, power, RF
Configuration : SMD
Applications : for electronics
Primary current : Min.:
