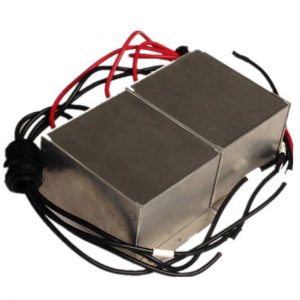

Wire-wound inductor

Output reactors exist for the purpose of motor protection. They are located on the output side of frequency converters. Small losses and small size and weight in relation to capacity are typical features for output reactors.

KEY FEATURES

Single phase reactors:

Power range: 10-191 Ws (type KU), 32-1020Ws (type KL)
Inductance tolerance: 0%+10%
Insulation class: Standard F (155°C)
Protection class: Standard IP00
Manufacturing standards: IEC76, IEC289

Technology : wire-wound
Electrical characteristics : single-phase, power
Configuration : toroidal
