Wire mesh conveyor belt800

Wire eyelet link belts

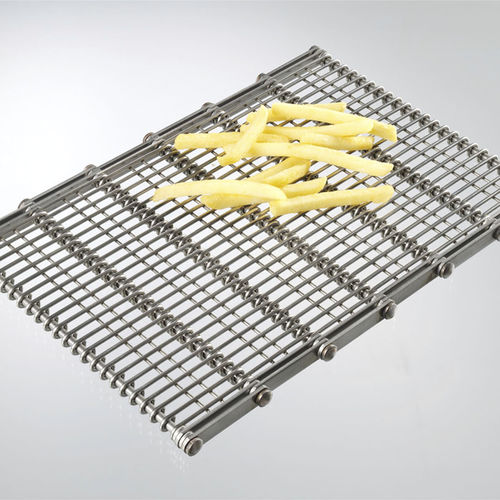

Wire eyelet link belt of Group 800

The wire eyelet link belt has double eyelet links and cross bars from smooth round wire. If required, a bottom welded cross wire can be provided for stabilisation. The edges can be either welded, riveted, brazed or bolted.

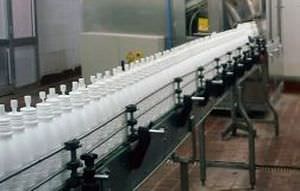

This type of belt is used in drying, cooling, washing and dewatering installations, e.g. in the beverage industry and for filter installations. Wire eyelet link belts are produced in a width of up to 6,000 mm and can be used at temperatures from -100 °C to 1,200 °C.

Specification:
Wire eyelets: 1.5 – 4.0 mm
Cross bars: 4.0 – 12.0 mm
Slot width: with bottom welded wire freely selectable
Pitch: 2.7 – 80.0 mm

Type : wire mesh
Material : chrome steel, galvanized steel, mild steel, nickel steel
Applications : for cooling systems, for drying, for washing
Sector : industrial, for the food industry
Tolerance : high temperature-resistant
Width : 6,000 mm (236.2 in)
