*Linear motor is the “maglev” in machine tool. Because there is no mechanical contact, high responsiveness can be achieved and the ball-screw backlash can be eliminated,the accuracy can be maintained for a very long time.

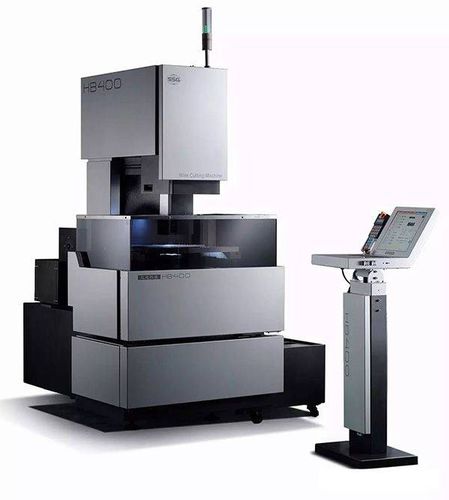

*Linear motor driven HB400L wire cutting machine tool, five-axis full CNC, performance upgrade again
*Full closed loop drive of linear motor (X, Y axis)
*Z axis numerical control (X, Y, U, V, Z five-axis full CNC control) is realized for the first time.
*Original non-electrolytic power supply technology
*Best Roughness Finish: Ra0.6μm
* Max.Cutting speed 300㎜²/min
Specifications:
– Machine body:
Worktable stroke(X,Y): 400*300mm
Wire Speed: 1.18-11.8m/s
Machine weight: 2260/2560㎏
Machine Dimension(L*W) : 2020*1700mm
Max.workpiece height: 300mm
Max. Cutting Angle: 20º/100mm
Worktable size: 580*460mm
Max.workpiece weight: 500㎏
– Water tank:
Filter accuracy: 0.01mm
Capacity: 130L
Working Methode: Filtration System
– Pulse Power:
Max cutting speed: ≥300㎜²/min
Best Surface Finish: Ra≤0.6μm
Max. Cutting Currrent : 12A
– CNC :
Hardware Configurations: Linear Motor, Full closed-loop and Schneider Inverter
Data Port：USB, LAN
Programming Code: ISO code
Axis Numbers：5-axis and 4 axis simultaneous control, pitch compensation realized.
Type : wire
Other characteristics : CNC
X travel : 400 mm (16 in)
Y travel : 300 mm (12 in)
