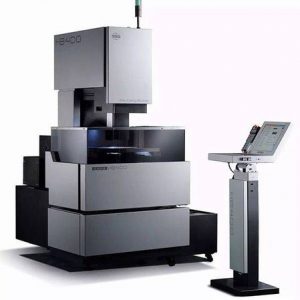

A new generation of the molybdenum wire cut machine of HB600，perfect integrated design and minimized workshop space support you to realize the maxium production value.
Fully meet the latest National Standard JB/T11999.1-2014）
Challenge the limit of molybdenum wire cut machine and achieve the peak performance
※ Best Surface Finish: Ra<0.6μm ※ Max. Cutting Speed : 300mm²/min ※ Original non-Electrolytic Power supply Innovative Architechure Four-axis AC servo with four-axis ball screw and linear guide rail, bringing unprecedented accuracy assurance. Independent layout X axis and Y axis independent layout, UV shaft truss structure to ensure high accuracy. The configuration of high quality castings and reinforcement can inhibit the deformation of the bed. Specifications Machine body: Worktable stroke(X,Y): 600mm*400mm Wire Speed: 1.18-11.8m/s Machine weight: 2500㎏/2800㎏ Machine Dimmension(L*W): 2260mm*1870mm Max.workpiece height : 400mm Max. Cutting Angle: 20º/100mm Worktable size: 1250mm*700mm Max.workpiece weight: 900㎏ Water tank Filter accuracy: 0.01mm Capacity: 130L Working Methode: Filtration System Pulse Power Max cutting speed: ≥300㎜²/min Best Surface Finish: Ra≤0.6μm Max. Cutting Currrent: 12A CNC System Hardware Configurations: Industrial computer, LED display, Mitsubishi AC servo driver system, Schneider Inverter Data Port: USB, LAN Programming Code: ISO code Axis Numbers: 5-axis and 4 axis simultaneous control, pitch compensation realized. Menu Language: Chinese/English/English (Inch)/ Italian/ Korean/Japanese Aluminum cutting option Type : wire-cut Other characteristics : CNC X travel : 600 mm (24 in) Y travel : 400 mm (16 in)
