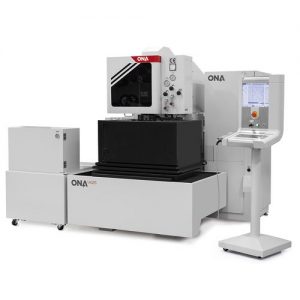

Wire-cut EDMAT40R Pro

Dimension of the machine (including the cabinet (mm))
2250x1700x2200

Weight of machine (kg)
2300

Dimension of work-table (mm)
590×350

Distance between work-table and floor(mm)
900

Dimension of work tank (mm)
800×500

Max. Cutter Diameter(mm)
300

Max. Cutter width(mm)
100

Cutter angle range
Rear-angle is 0-20°, side-back -angle is ±45°

Axis A Rotational Angle range
±360°

Min. resolution of rotation axis
0.001°

Max. Speed of axis A
20r/min

Weight of axis A
20kg

Max. load
15kg

Max. load torque
15Nm

Degrees of protection
IP65

1.Multi-point detection function

2.Cutting surface quality ≤5μm

3.Max. cutting angle ±45°

4.Anti-blacken power supply

5.Cooling system: air conditioner

6.Integrated body structure

7.24” LCD screen, adjustable height

8.Environment friendly protective cover

High-Speed Wire Erosion Machines – Used for Processing Metal Application PCD Tools

a.Self-developed powerful processing database of PCD tools

b.Automatically generate tools machining procedures, after inputting cutter parameters.

c.CNC 5 axes (optional 6th axis).

d.U axis tilts automatically, to cut left and right side back angles at the same time.

e.Extended service life of electrode wire and guider 2~3 times.

f.Automatically test the index of cutter teeth, then turns the tested cutter index into the form, as input data of automatic programming.

g.A-axis can rotate 360°. Adopts fast chuck structure, for fast loading of cutter and accurate positioning.

Type : wire-cut
Other characteristics : CNC, precision, high-speed, for PCD tools
X travel : 380 mm (15 in)
Y travel : 280 mm (11 in)
