Wing nutEWN-LP

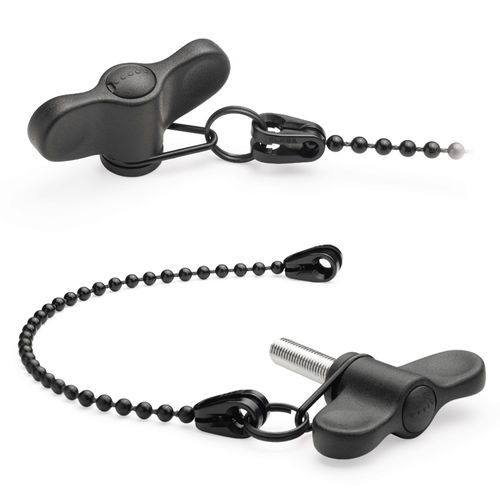

The EWN-LP Wing nuts are made in Glass-fibre reinforced polyamide based technopolymer, with a grey-black colour and a matte finish. The elastic ring, housed in the groove of the wing nut, can turn freely. The key ring connects the elastic ring to the retaining chain, composed of acetal resin based technopolymer spheres and terminals. Suitable where it is necessary to prevent the loss of the wing nut. The EWN-LP Wing nuts are part of the Ergostyle line, whose products are made in an ergonomic design that easily adapts to worker’s hand.

Special executions on request

• – Chain in different lengths.
• – Wing nut with stainless steel cable GN 111, GN 111.2, GN 111.4.

Types : wing
Material : polyamide, technopolymer
Other characteristics : threaded, flat-head
Width : 7 mm, 8 mm, 9 mm (0.28 in)
Nominal diameter : 16 mm, 19 mm, 132.5 mm (0.63 in)
Height : 24 mm, 28 mm, 32 mm (0.945 in)
