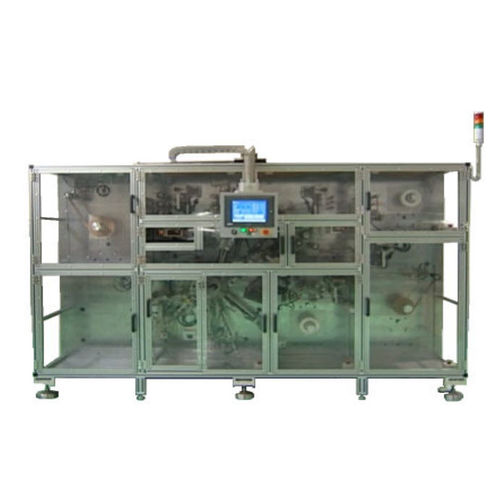

Winder for large-sized cylindrical type battery CEW-100
Pursuit completely of high accurate winding and foreign matter prevention
High accurate winding is achieved by the compact edge control unit located before winding position. Also countermeasures against foreign matter are
conducted for each of complete parts.
Outstanding Feature :
– Thorough dust control and conatmination prevention
By appligying Zone Block Method, pathway to the winding position of each materials are divided completely consistuting each zone, and air flow control in each zone prevents dust being mixed into the jelly roll.
– Winding in high accuracy
Application of high speed and highly accurate edge control unit can remarkably reduce alignment errors.
– High speed winding
Winding speed lOOOmm/sec.
SS Machine tact time varies depending on the electrode length to be wound,
mandrel size, and tension to be applied.
Operation : automatic, motorized
Applications : cable
Other characteristics : for wire processing machines
