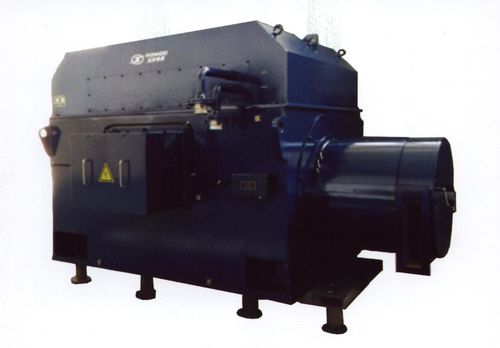

Wind turbine alternatorYJ181A

5MW medium-voltage double-fed asynchronous wind power generator adopts radical dual-path circulation cooling system, and has characters of high density/weight/power, small volume, light weight, low temperature rise, high reliability and strong environment adaptability, etc.

Primary insulation structure adopts Class-H corona resistant medium-voltage insulation system, and has features of aging resistance and long service life. Especially for marine applications, it adopts fungus-proof, dampness-heat resistant and anti-fungal special designs. The anti-corrosion standard of entire machine is C5-M.

Applicable environment: Coast and marine environments, etc.

Phase : three-phase
Type : asynchronous
Number of poles : 6-pole
Product applications : for wind turbines
Field : for marine applications
Other characteristics : liquid-cooled, medium-voltage
Power in kVA : 5,300 kW (7,205.99 hp)
Voltage : 6,300 V
