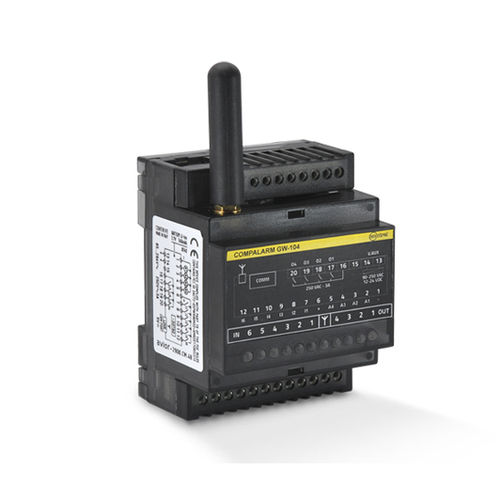

GW-104 IoT remote control, 6 DI, 4 AI, 4 relays, embedded WebServer, Modbus, alerts on local events

GW-104 is an industrial DIN rail unit for supervision and control through WiFi and cellular networks. GW-104 can work both as a passive remote controller managed by remote commands (CLOUD) or as a programmable controller deploying actions in response of events (EDGE). GW-104 has plenty of input, output and communication CHANNELS, each of them can be enabled or disabled and can trigger events

Introduction
Range COMPALARM
Product name GW-104
Product type Unit for supervision and control through WiFi and cellular networks

Technical characteristics
Device application Gate control
Climate control
Home automation
Home alerts
Intrusion detection
Failures
Outdoor lighting
Streetlights
Distribuited control
Sensor network
Data transfer
Supply voltage 85…264 VAC 47…63 Hz | 120…370 VDC
9…27 VAC | 9…35 VDC (optional)
RJ45 modular connector 5 VDC
Power consumption 20 ms
Pulse counter frequency: < 25 Hz Running counter: up to 999999 min Relay outputs 4 SPST contacts Rated current 3 A Rated voltage 250 VAC Breaking capacity 750 VA max Analog inputs 4 Input: 0...10 V | 0...20 mA | NTC Resolution: 0,014 V | 0,028 mA | 0,1°C Impedance: 35k Ω | 100 Ω Accuracy: ± 2 % Full scale value: ± 1000000 Data interface RS-232 (RJ45 modular connector) 115200 bit/s 8 data bit, 1 stop bit, no parity Wi-Fi Protocols: 802 b/g/n Frequency: 2,4-2,5 GHz Output power: 20 dBm Antenna gain: 1 dBi EMBEDDED Security: WPA / WPA2 Range indoor: 30 m Range outdoor: 100 m Bus : WiFi, RS-232, Modbus Other characteristics : remote, IoT
