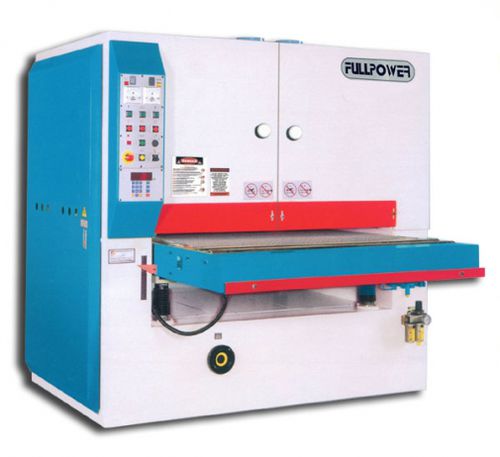

• The machine frame is manufactured of heavy duty steel plate to minimize vibration and deflection.
• All parts of the machine can be easily obtained for maintenance and service.
• Under the sanding aggregate and the pressurerollers, it’s the stable feed table.
• Around the table, it runs an endless anti-slip conveyor belt.
• The drive is powered by a strong feed motor and a variable speed control from 4 to 16 meters per minute.
• The conveyor belt is adjustable with an auto tracking unit.
• The sanding belt runs around the contact drum and the tension (or idle) roller.
• The tracking of the sanding belt is achieved by an electric-eye.

• MICRO-COMPUTER THICKNESS SETTING
This machine employs a micro-computer for high accuracy and fast setting of thickness.

• ANTI-KICKBACK FINGERS
The anti-kickback fingers are provided in front of spiral cutter head for eliminating the danger of panel kickback.

• AUTOMATIC TRACKING CONTROL OF CONVEYOR BELT
Employs pneumatic system for automatic control of conveyor belt running track, that ensuring normal track at all times.

• AUTOMATIC BRAKE
Employs a disc type braking system. In case of insufficient air or power failure, the machine brakes instantly for safety.

COMPREHENSIVE SAFETY GUARDS
• Emergency stop switch.
• Body activated emergency stop bar.
• Sanding belt tracking limit control.
• Automatic machine stop in event of power falilure.
• Contact drum does not run in case of loose tensionof sanding blet.

SPIRAL CUTTERHEAD
• The precision machined spiral cutter head is mounted in front of sander head.
• It gives heavy duty planing capacity, low noise urnning and extremely fine sutface of cut.

Type : wide-belt
Operation : electric
Applications : for wood
Other characteristics : speed control, heavy-duty
Power : 15 ch, 20 ch, 25 ch (15 hp)
